Description

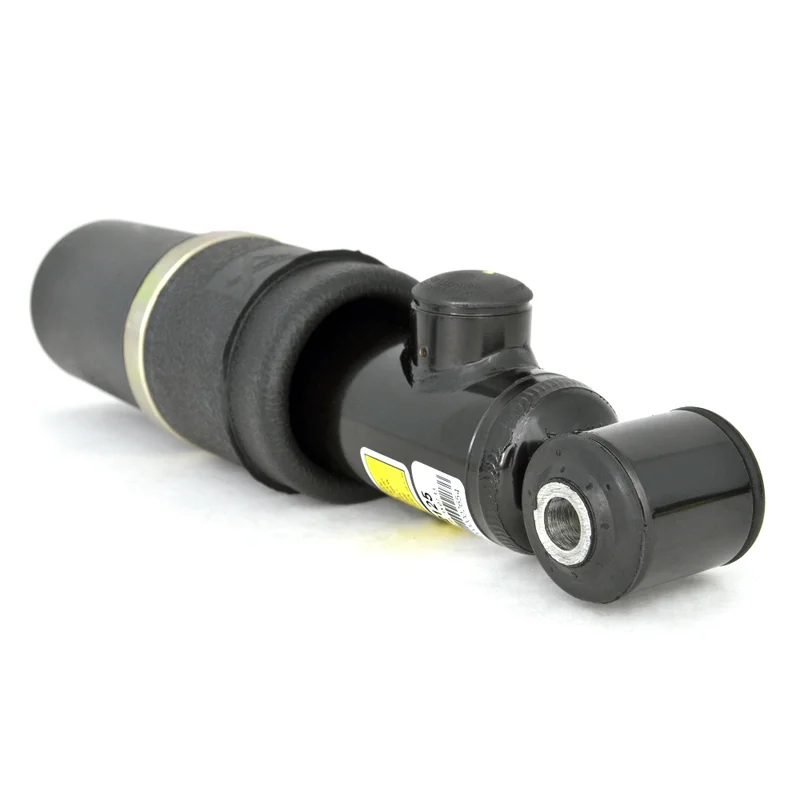

Arnotts new rear air shock kit converts the vehicles electronic shocks to a much more dependable passive air shock system. This kit keeps the rear air leveling system completely operational. Arnotts replacement kit comes with a relay to bypass the SSS (Speed Sensitive Suspension) control module.Exclusively for 94-95 Cadillac DeVille/93 Eldorado/93 SevilleSold in pairsNon-Electronic/Passive ReplacementAssembled and Tested in USAAir Suspension Load Leveling Remains FunctionalMUST replace in pairs

Adjustable Damping:No

Air Bladder Material:Rubber

Air Ride Suspension:Yes

Bearing Plate Included:No

Boot Color:Black

Coil Over Springs Included:N/A

Compressed Length:387.8 (mm)

Dust Shield Material:N/A

Extended Length:521 (mm)

Grade Type:Standard

Internal Construction Type:Twin-tube

Internal Damper Type:Hydraulic

Lower Mount Type:Loop/Eyelet

Lower Mounting Isolator Included:Yes

Mounting Hardware Included:No

Protective Aluminum Can:No

Shock Absorber Rod End Measuring Point:Shoulder of Stud

Shock Spring Assisted:Yes

Spring Isolators Included:Yes

Spring Rate Type:Progressive

Springs Included:Yes

Travel Length:133.2 (mm)

Upper Mount Type:Stud

Upper Mounting Isolator Included:No
