Description

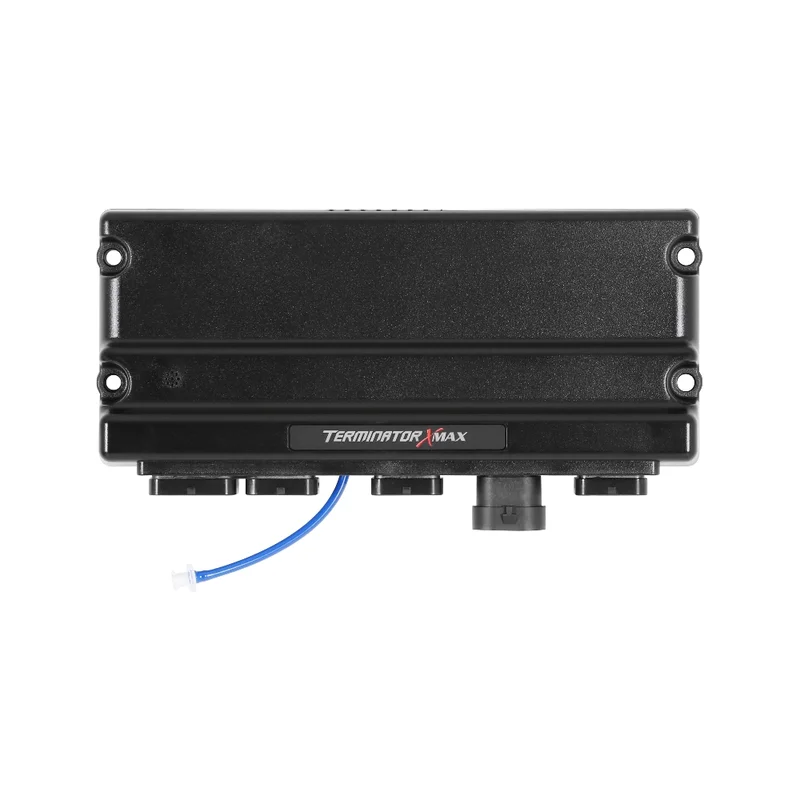

24x Crank – 1x Cam – Multec 2 Injectors -Drive-By-Wire Throttle Body Control – 3.5 in. TouchscreenDesigned for 4.8/5.3/6.0 Truck Engines with 24x Crank, 1x Cam and a Drive-By-Wire Throttle BodyReal-Time fuel map learn, takes the guess work out of tuning your base fuel table.High Impedance Injector Drivers will safely power most Stock LS injectors, and Holley EFI Injectors. Injector support chart provided in the instructions (Will not control Low Impedance Injectors)All of the new Terminator X systems utilize the Bosch LSU 4.9 wideband to relay AFR information to the ECU for accurate reading and precise tuning control.On-Board 1bar MAP sensor, is perfect for N/A or Nitrous engine combos. If your combination requires a 2+Bar, we recommend GM 12592525, and our adapter part number 558-416.4 Outputs â?? Ground, PWM – , for accessories such as fans, boost control, nitrous control, IAC Kit, and MoreMAP Sensor vacuum hose adapters (1/8th â?? ¼ and 3/16ths)4 Inputs â?? 12v, Ground, 5v, and Frequency, for things such as additional pressure sensors, or activation triggers for nitrous activation, or a trans brakeBoost Control â?? Boost vs Time, Boost vs Gear, Boost vs RPM, Boost vs Speed, Boost SafetiesNitrous Control â?? Single Channel of Wet or Dry, Progressive or Non-Progressive, Rich/Lean Safeties, and target Closed Loop AFRAdvanced Tables â?? 4x 1D Tables, 1x 1D per Gear Table, 4x 2D Tables, 1x 2D per Gear Table, can be used for any custom tables you can dream up, such as Flex Fuel Sensor Offset Table, or a custom fuel or oil pressure safety!On-Board Diagnostic LEDS for: ECU Power â?? Engine Run â?? Wideband Status â?? TPS Calibration â?? Crank Signal â??Cam Signal. Allow you to identify any Critical engine issues at a glanceThe included 3.5″ Touchscreen Handheld contains a calibration wizard, that allows you to quickly build a base tune for any LS engine. Additionally the handheld provides internal data-logging and a fully customizable gauge display.The compact ECU size allows you to mount it virtually anywhere. Remember, diagnostic LEDS must face up!Plug and play compatible with multiple Holley EFI accessories including our gauges, shift lights, various modules, and digital and pro dashes (Holley P/N’s 553-106, 553-111, and 553-112)Free EFI Tuning Software for complete control of your Terminator X power plantRecommended Pedal part number – 10379038Includes: 24x LS Engine Main Harness – Multec 2 Injector Harness – DBW Throttle Body Harness – Terminator X MAX ECU – ECU Main Power Harness – Bosch LSU 4.9 Wideband Oxygen Sensor – Input/Output Harness – and assorted vacuum adapters.Take control of your LS engine with Terminator X Max! Don’t settle for a junkyard ECU with a cumbersome tuning interface when you can have complete control of your engine, self-learning fuel strategies and the proven, race-winning technology of Holley EFI at a budget-friendly price!Terminator X Max features real-time fuel learn, high impedance injector drivers, an integrated 1bar MAP sensor, and 4 programmable inputs and outputs. The inputs and outputs are ideal for electric fans, boost control solenoids, progressive nitrous control, and much more. Part number 550-930 also has drive by wire (DBW) throttle body control.Terminator X Max comes fully loaded with base maps for common LS engine combinations to get you out of the garage and on the road/track fast. The 3.5″ touch screen LCD handheld contains an easy to use calibration wizard as well as tuning and gauge display functions. Also included is Holley EFI’s industry-leading, easy to use software suite that allows full laptop access for advanced users. Whether you are building a budget beater or a boosted race car, Terminator X MAX has the features and technology you need at a price that won’t break the bank!
