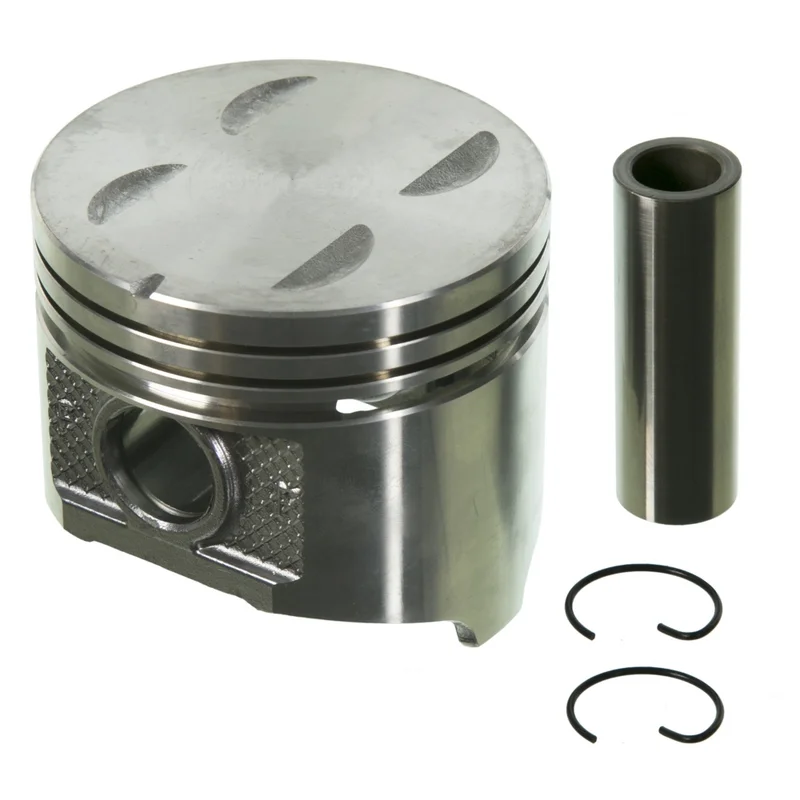

Description
Built for the demands of today’s engines, Sealed Power(R) parts deliver the dependability that engine professionals trust. Designed to help restore engine performance, Sealed Power application-specific components help ensure the job is done right the first time… because downtime is not an option.
Assembly Lubricant Included: No
Bore Diameter: 3.9063″
Compression Height: 1.720″
Designed for full-float or press-in-rod pin – 8.5: 1 C.R.
Grade Type: Premium
Head Illustration: 26
Head Type: Flat Head with 4 valve reliefs
Minimum Clearance: 0.001 @ 2.660 from top of head
Oil Ring Thickness: 0.1875 Inch
Oversized Amount: 0.040 Inch
Oversized: Yes
Pin Offset (Inch): 0.06
Pin Offset (MM): 1.524
Piston Head Type: Flat
Piston Material: Cast Aluminum
Piston Pin Outside Diameter: 0.9842 Inch
Second Compression Ring Thickness: 0.0781 Inch
Top Compression Ring Thickness: 0.0781 Inch
