Description

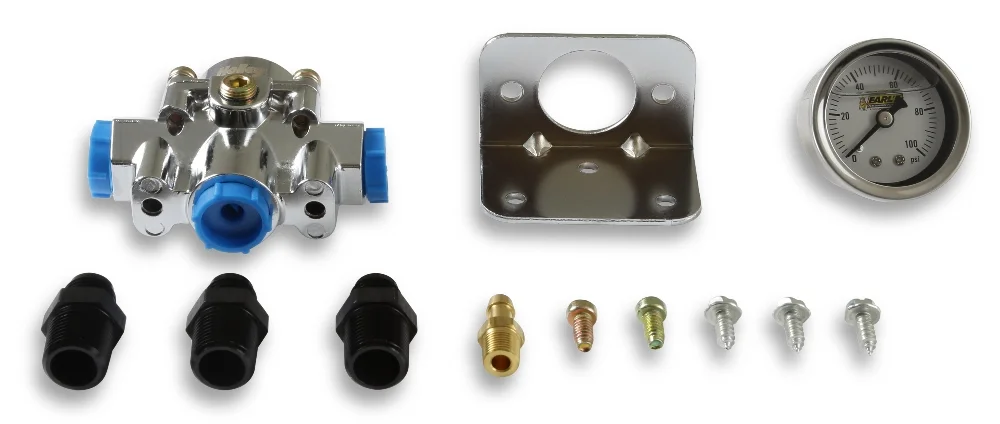

Included gauge and fittingsDie cast aluminum construction with chrome finishAdjustable from 15-60 psi for precise fuel pressure adjustments60 PSI preset pressureUsed in return style systems with a line back to the fuel tank3/8â? NPT Inlet/Outlet Ports3/8″ NPT Return Port1/8â? NPT gauge portEarl’s Fuel Pressure Gauge (100187ERL)Earl’s 3/8â? NPT to -6 AN fittings (AT981666ERL x3)1/8″ NPT Boost Reference (1:1) and Barbed FittingMounting bracket includedHolley EFI bypass fuel pressure regulator kits are part of a complete line of fuel system products from Holley. The included 12-882 EFI Fuel Regulator features a die cast aluminum body and a chrome finish for corrosion resistance and clean appearance. The regulator contains 3/8″ NPT inlet/outlet ports, 3/8″ NPT return port, 1/8″ NPT gauge port, and a 1/8″ NPT vacuum port for Boost Reference (1:1). In addition, 3 Earl’s 3/8″ NPT to -6 AN fittings, a barbed fitting for the vacuum port, a mounting bracket, and all necessary hardware are also included in the kit.

Adjustable: Yes

Color: Chrome

Fuel System: EFI

Fuel Type: Gasoline

Gauge Included: Yes

Gauge Port Included: Yes

Grade Type: Performance

Inlet Gender: Female

Inlet Port Diameter: 3/8 NPT”

Inlet Size: 3/8 inch NPT

Inlet Type: NPT

Material: Aluminium

Maximum Pressure: 60 PS

Minimum Pressure: 15 PS

Mounting Bracket Included: Yes

Mounting Hardware Included: Yes

Mounting Type: Bolt On

Outlet Gender: Female

Outlet Port Diameter: 3/8 NPT Inch

Outlet Size: 3/8 inch NPT

Outlet Type: NPT

Port Quantity: 5

Pressure Range: 15-60 PSI

Pressure Rating: 15-60 PS

Rebuildable: Yes

Return Size: 3/8 inch NPT

Style: Bypass

Vacuum Port Quantity: 1
