Description

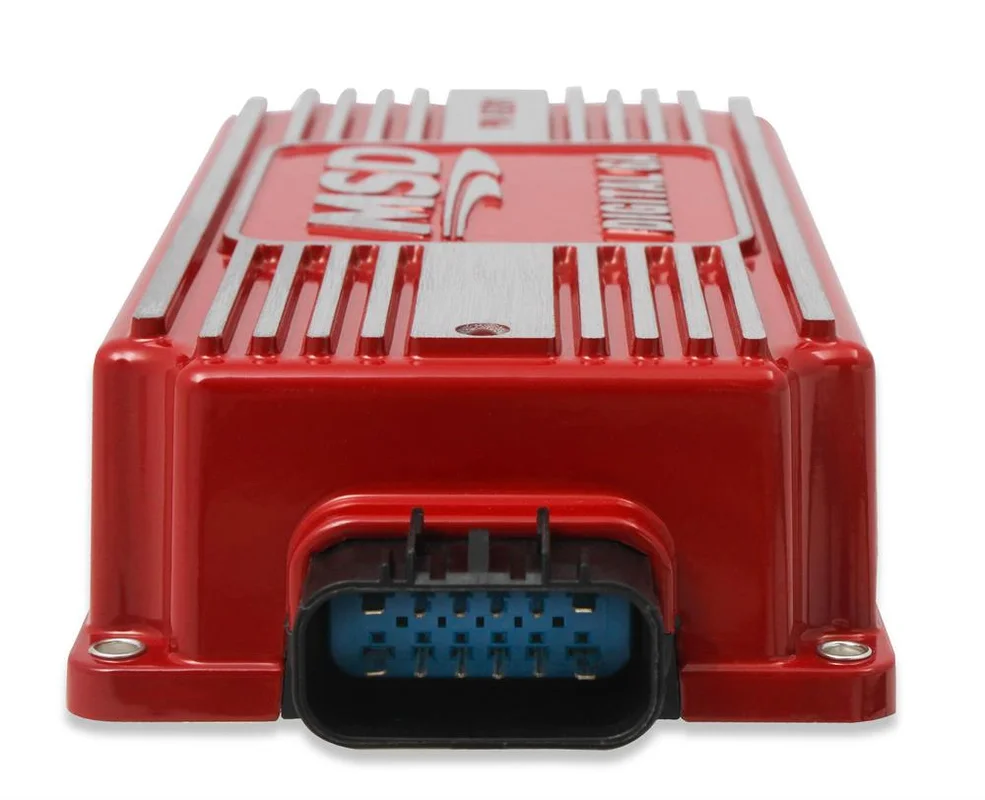

Compatible with 4, 6, or 8 Cylinder Engines – Built-in LED for System ChecksA sealed, locking connector keeps the minimal wiring of the 6A tidy for a clean installation in all applications.It can be run on 4, 6 and 8 cylinder engines with a 12 volt negative ground electrical system and can be triggered with breaker points, an electronic amplifier or magnetic pickups.The Digital 6A is a microprocessor controlled, capacitive discharge ignition that multi sparks up to 3,000 RPM providing easy starts, a clean, smooth idle and quick throttle response by optimizing your engines efficiency.Above 3,000 RPM, a single spark stays lit for up to 20⁰ of crankshaft rotation ensuring a complete burn of the air / fuel mixture in every cylinder.If you’re looking to improve the performance of your modified mill, we have the answer. Whether you’ve done a cam swap, or bolted on a carb, intake and headersâ?¦ the 6A is a surefire way to harness all the ponies under your hood.Built-in LED for system checksSmooth IdleSealed, locking connectorFull, capacitive discharge ignition power throughout the RPM rangeEasy StartsTach output wire.7 Amp per 1,000 RPMCompatible with 4, 6 or 8 – cylinder enginesQuick throttle response12-15 Volts, 7 Volt Start15,000 RPM with 14.4 Volts

Bluetooth:No

Color: Red

Connector Gender: Female

Connector Quantity: 1

Current Draw: 1000 RPM

Features: No Rev Limiter

Grade Type: Performance

Height: 1.825 Inch

Ignition Box Type:Digital

Ignition Type: Performance

Length: 8″

MAP Sensor:No

Maximum RPM: 15,000 RPM

Mount Type: Surface Mount

Mounting Hardware Included: Yes

Primary Voltage: 520-540

Rev Limiter:No

Rotary Dials:No

Secondary Voltage: 45,000

Spark Energy (mJ per spark): 135-145

Terminal Gender: Male

Terminal Quantity: 12

Voltage Required: 12-15

Width: 4 Inch
