Description

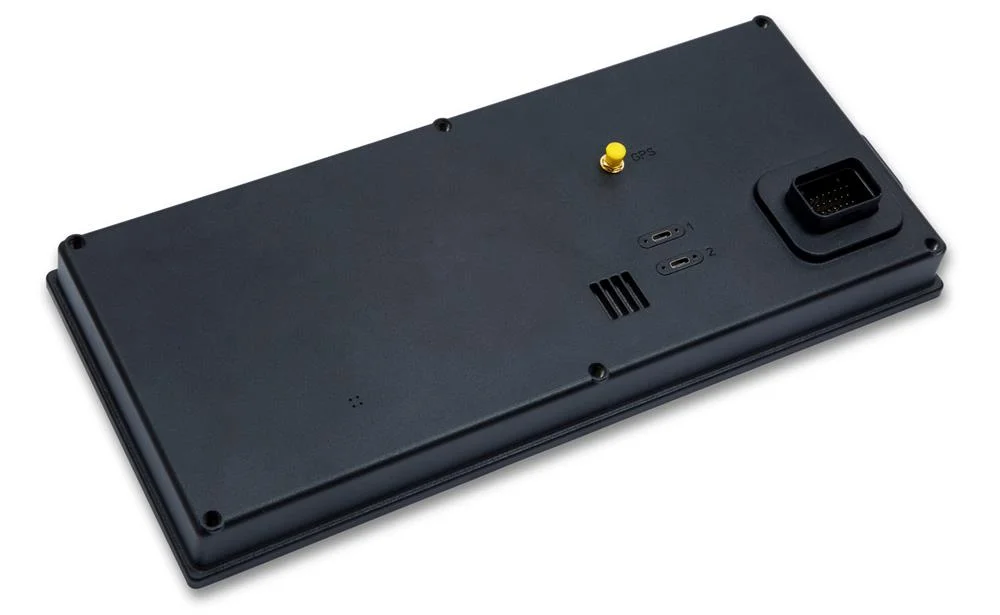

The Holley EFI 12.3″ Pro Dash is customizable with a variety of gauge and indicator screens that can be programmed to display any parameter you need from a Holley EFI system.Plug-and-play Display support for Dominator, HP, Terminator X Sniper EFI (not compatible with Sniper 2)Real-time ECU tuning allows you to make quick tune changes without needing to hook up a laptop (HP and Dominator ECUs only)Capable of monitoring up to 238 real-time values such as RPM/TPS/Boost16 default background skins pre-loaded with unlimited options for importing custom layoutsQuickly swipe between multiple active screens (tune, warm-up, race, drive, etc.)Virtual switch panel eliminates the need for external toggle switchesManual or auto-brightness features for easy viewing day or nightBuilt-in GPS with odometer function (antenna included)On-screen datalog playback features allows you to review vital run informationExpandable storage via USBNo stylus required – utilizes capacitive touch just like your smart phoneUser definable channel alarms and warnings6x 1/4-28 mounting holes for surface or flush mounting, with high quality hardware includedIncludes everything needed for installationUSB keyboard and mouse functionality makes it quick and easy to setup new layoutsIncludes 34 Pin Wiring Harness contains Power, Ground and CANbus connectionsInput and output functionality for 13 multi-configurable inputs and 4 ground switched outputsUser defined alarms for any inputUpgradable with future software enhancementsViewing area is 12.3″ on the diagonal, 11.5″ wide by 4.25″ tallDash weight -3.29lbsCompatible with our Plug-and-Play Programmable Shift Light – Part Number 553-107Trust. Whether it’s your engine builder, team members or EFI System, trust is earned, not given. When your expensive engine, sponsorship and reputation are on the line, trust your engine monitoring to the Holley EFI 12.3″ Pro Dash.Monitor the power of your Holley EFI system at a glance! The Holley EFI Pro Dash measures 13.44″ wide, 5.81″ tall, and 1.25″ deep and is completely customizable for use in a variety of motorsports applications. It features a 12.3″ 1280×480 resolution low glare, high brightness, high contrast, full-color capacitive touch screen for easy viewing even in full sun, plug and play connection to all Holley EFI systems as well as a weatherproof aluminum housing featuring flexible mounting options. Holley EFI 12.3″ Pro Dash includes everything needed for installation.The Holley EFI 12.3″ Pro Dash also features a plethora of inputs and outputs for expanded functionality of your Holley EFI installation. The included 34pin connector has 13 multi-configurable inputs for most Holley EFI sensors, such as pressure and temperature. Not using Holley EFI sensors? We still have you covered – these inputs are configurable, allowing you to utilize different sensor scaling calibrations. The Pro Dash also features two dedicated speed inputs for RPM, Driveshaft speed, or any other Hall effect speed input. Need more outputs? The Pro Dash contains 4 ground switched outputs that can be utilized with the switch panel feature to quickly turn on any of your auxiliary accessories, such as a master nitrous switch or an electric water pump.

Analog Or Digital: Digital

Application:Terminator X/HP/Dominator/Sniper 1 Mizu CAN

Bezel Color: Black

Depth: 1.25″

Face Color: Programmable

Font Color: Programmable

Grade Type: Performance

Height: 5.81″

Illuminated: Yes

Maximum Gauge Diameter: Programmable

Minimum Gauge Diameter: Programmable

Pointer Color: Programmable

Screen Size: 12.3″ Viewing Area

Screen Type: Capacitive Touch Screen

Terminal Gender: Female

Universal Or Specific Fit: Universal

Width: 13.44″

Wiring Harness Included: Yes
