Description

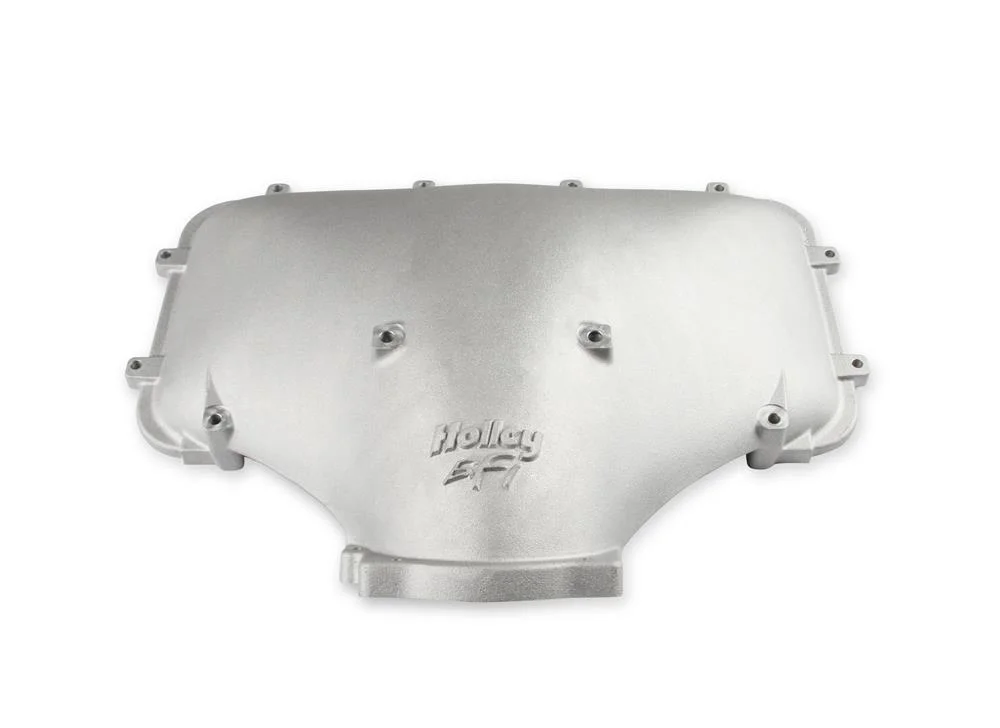

8.2″ SBF Ford Hi-Ram Intake Manifold with 105mm 1986-95 Ford 5.0 Throttle Body Flange Side Mount Top.Plenum Top Gasket Type â?? 3/32â? Round O-ring CordThe 8.2 SBF manifold is available to work with 105MM throttle bodiesDesigned for side mounted throttle bodiesFord 5.0 throttle body fitmentAllows room for designing boosted applicationsManifold is designed for a 8.2″ SBF deck height.Lid has been verified to fit under Cervinis 2.5â? cowl hood on 1979-1993 Mustangs with 351W 302W Hi-Ram bases when using motor mounts that retain stock engine locations.EFI fuel rails are machined for -8AN o-ring fittings with passages large enough to accommodate high fuel flows and dampen pressure pulsations in the fuel system and come standard with EFI Hi-Ram kits.â?¢ Cast aluminum construction.â?¢ EFI fuel rails are machined for -8AN O-ring Fittings with passages large enough to accommodate high fuel flows and dampen pressure pulsations in the fuel system and come standard with EFI Hi-Ram kits.*** A low profile distributor will be needed when using this manifold. We have a Sniper Hyperspark version #565-322 and a Holley EFI Dual Sync #565-211 available.The EFI Hi-Ram manifold line has a new addition for the 8.2″ SBF Ford application. This manifold comes with a 105MM 1986-95 Ford 5.0 throttle body flange side mount top. The runner length and tapered cross section design will perform well for a wide range of engine combinations. The engineering team also redesigned the water crossover passage to allow room for distributor phasing. Aggressive, bold, race-bred styling will make bad intentions clear for drag race, muscle car, marine, off-road, sandrails, pulling trucks, track, street-rod applications and more!Manifold is designed for a 8.2″ deck height.â?¢ Runner length and the tapered cross-section designed to perform well for a wide range of engine configurations

Basic Operating RPM Range: 1500-7000 RPM

Carburetor Flange: N/A

Carburetor Quantity: N/A

Carburetor Studs Included: N/A

CNC Ported: No

Color: Natural

Construction: Cast

Cylinder Head Port Shape: Rectangle

Deck Height: 8.2 Inch

EGR Port: No

Engine: Ford Small Block

Flange Style: EFI

Fuel Injectors Included: No

Fuel Rail(s) Included: Yes

Fuel System Type: EFI

Gasket Or Seal Included: No

Grade Type: Performance

Intake Port Gasket(s) Included: No

Manifold Type: Hi-Ram

Material: Aluminum

Nitrous Bung(s) Included: No

Plenum Finish: Natural

Port Size: 2.00″ x 1.190″

Removable Runners: No

Removable Top/Lid: Yes

Single Or Dual Plane Type: Single Plane

Throttle Body Bore Diameter: 105 MM

Throttle Body Gasket Included: Yes

Throttle Body Included: No

Throttle Bore: 105mm

Vacuum Ports: Yes
