Description

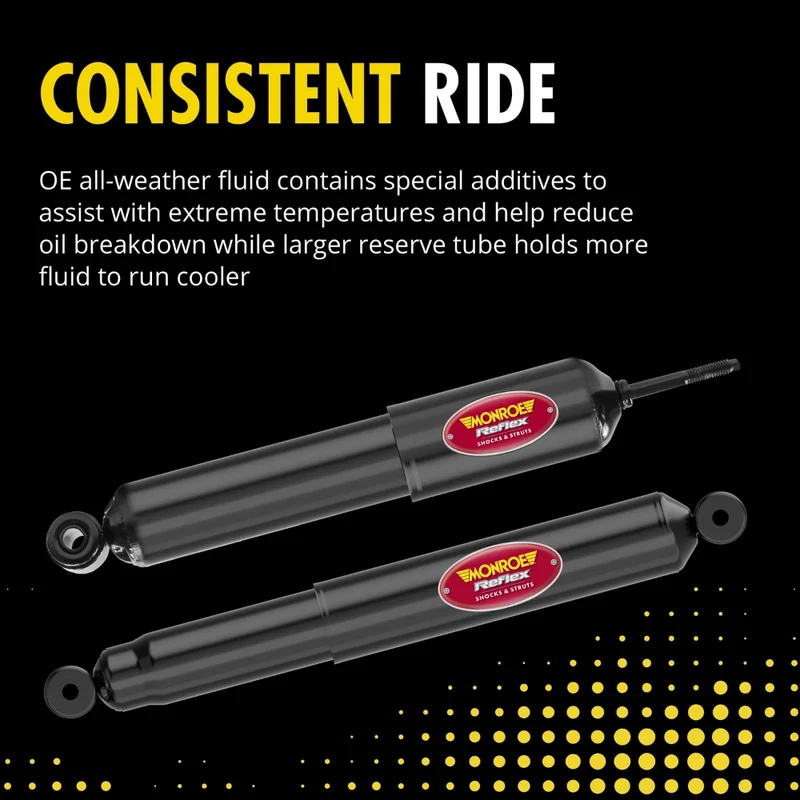

Reflex Rear Suspension Shock AbsorberIdeal for vehicles with a higher center of gravity, Monroe(R) Reflex(R) light truck shock absorbers feature ASD (Acceleration Sensitive Damping) valving technology that automatically adjusts the unit to absorb the impact, helping to reduce vehicle roll and dive.
Active or Passive Suspension: Passive
Adjustable Compression: No
Adjustable Rebound: No
Adjustable Ride Height: No
Compressed Length: 14.5″
Dust Shield Included: Yes
Dust Shield Material: Metal
Extended Length: 24″
Gas Charged: Yes
Grade Type: Premium
Hydraulic Lockout: No
Includes Bump Stop: No
Internal Rebound Bumper: No
Lower Mount Code: LS47
Lower Mount Type:Loop (Eyelet) Bushing and Sleeve
Mounting Hardware Included: No
Parts Pack(s): None
Shock Absorber Body End Measuring Point: Center of Loop
Shock Absorber Rod End Measuring Point: Center of Cross Pin
Travel Length: 9.5 Inch
Upper Mount Code: XP7
Upper Mount Type: Cross Pin Mount – Closed Ended, 5/16″ Hole ID (Both Ends) X 2.7/8″ Pin Length (Hole Center to Center)
