Description

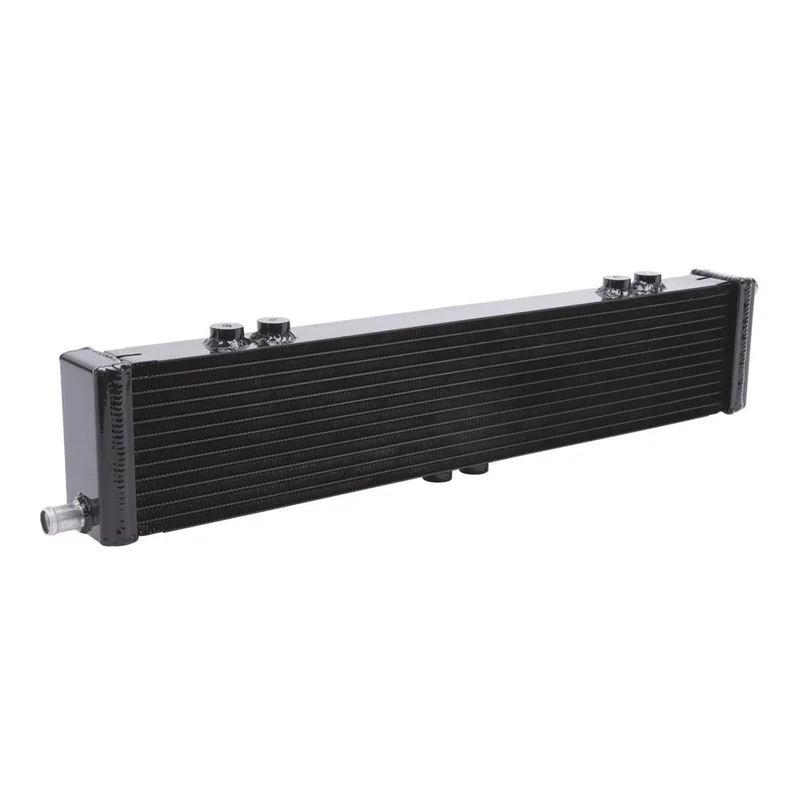

Edelbrock part #15406 is a Edelbrock heat exchangers for universal or enforcer supercharger applicationsdelivers 22 000 btu/ hr. with a double rowEdelbrock heat exchanger part #15406 is a single pass/two row design and delivers 22 000 btu/hr Includes a 3/4in. barbed inlet and outlet for plumbingalong with M6x1.0 threaded bungs for mounting. Heat exchanger part #15406 is a Single Pass/Two Row Universal Heat Exchanger with the following dimensions (26.5in. W x 5in. H x 2.62in. D) and 6 threaded bungs. Edelbrock offers a wide selection of Universal Heat Exchangers to work with the Edelbrock Universal or Enforcer Supercharger systems. Edelbrock heat exchangers offer reliability and durable construction for high Performance’s street applications.

BTU Rating: 22000 btu/hr

Construction: Single Pass

Finish: Gloss Black Powder Coated

Grade Type: Performance

Inlet Port Outside Diameter: 0.75″

Inlet Port Quantity: 1

Length: 26.58″

Material: Aluminum

Mounting Hardware Included: No

Mounting Hole Diameter: M6 x 1.0

Mounting Hole Quantity: 6

Outlet Port Outside Diameter: 0.75 Inch

Outlet Port Quantity: 1

Quantity: Sold Individually

Row Quantity: Two

Thickness: 2.62 Inch

Width: 5.2 Inch
