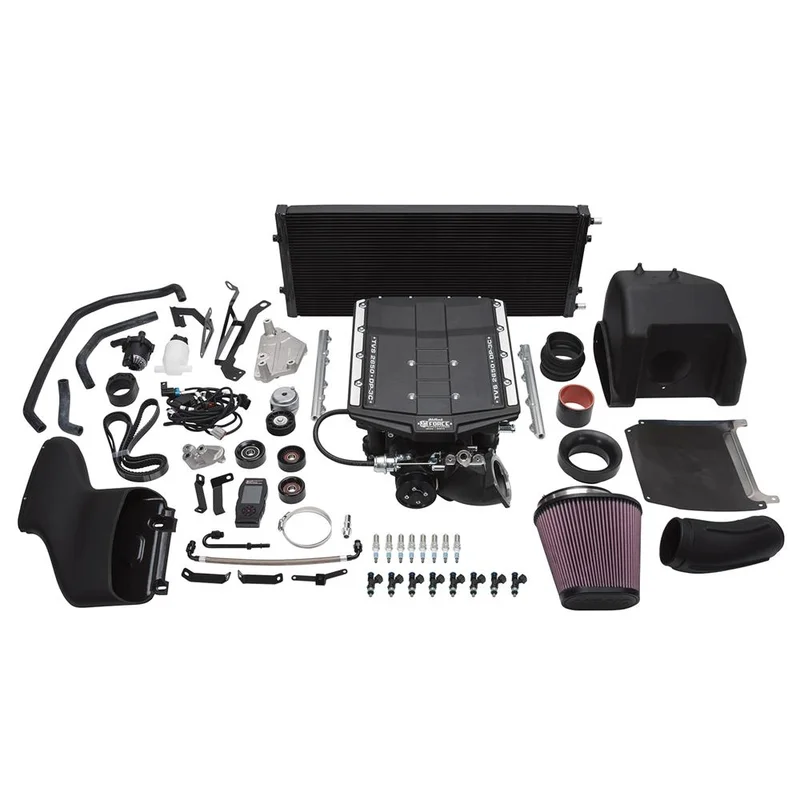

Edelbrock supercharger Stage 1 Street System part #1557 for 2015-17 Ford F-150 increases the performance of your 5.0L 4V engine to 533 horsepower and 482 ft-lbs of torque at the rear wheels.The Edelbrock supercharger Stage 1 Street System part #1557 for 2015-17 Ford F-150 increases the performance of your 5.0L 4V engine to 533 horsepower and 482 ft-lbs of torque at the rear wheels. The core of this system is the Eaton Gen VI 2650 TVS rotating assembly with a four-lobe design with 170 degrees of twist for maximum flowminimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to eliminate parasitic loss under light throttleimproving mileage potential. Our unique and efficient inlet configuration results in a shorterless restrictive intake path for improved airflowwithout the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger.The supplied tune is intended for completely stock vehicles with the exception of a cat-back exhaust.

9040: D-215-97

Calibration: Yes

Center Housing Cooling Type: Intercooler

Finish: Black Powder Coated

Fuel Injector Type: 50 4U

Gasket Or Seal Included: Yes

Harmonic Balancer Diameter: Stock

Hose Included: Yes

Housing Material: Cast Aluminum

Internal Step Up: Yes

Maximum Boost Pressure: 15.5 PS

Maximum Horsepower: 533RW

Maximum Pressure Reading: 15.5 PS

Maximum Torque: 482RW 85

Mounting Bracket Included: Yes

Mounting Hardware Included: Yes

Oil Capacity: 150 ML

Outside Pulley Diameter: 3.5 Inch

Pulley Belt Width: 6-Rib

Quantity: Kit

Rotor Type: Eaton TVS 2650

System Type: Stage 1 – Street System

Universal Or Specific Fit: Specific

Vehicle Model: F-150
