Description

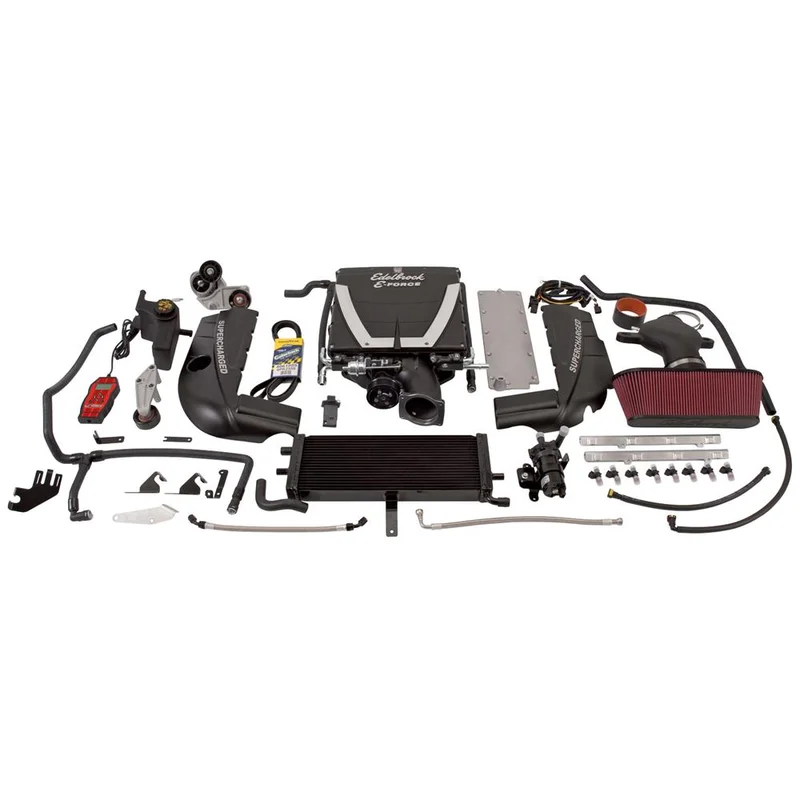

The Edelbrock Supercharger System part #1593 is for the 2005-07 LS2 base model corvette. This kit produces 554 horsepower and 515 ft-lbs of torque.The Edelbrock supercharger Stage 1 Street system part #1593 for 2005-07 Chevy Corvette increases the performance of your LS2 engine to 554 horsepower and 515 ft-lbs of torque at the crank. The core of this system is the Eaton Gen VI 2300 TVS rotating assembly with a four-lobe design with 160 degrees of twist for maximum flowminimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttleimproving mileage potential. Our unique and efficient inlet configuration results in a shorterless restrictive intake path for improved airflowwithout the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger.The supplied tune is intended for completely stock vehicles with the exception of a cat-back exhaust.

9040: D-215-89

Air Filter Included: Yes

Calibration: Yes

Center Housing Cooling Type: Intercooler

Finish: Black Powder Coated

Fuel Injector Type: 52 4U

Gasket Or Seal Included: Yes

Harmonic Balancer Diameter: 7.5″

Hose Included: Yes

Housing Material: Cast Aluminum

Internal Step Up: Yes

Maximum Boost Pressure: 5.5 PS

Maximum Horsepower: 554

Maximum Pressure Reading: 5.5 PS

Maximum Torque: 515 85

Mounting Bracket Included: Yes

Mounting Hardware Included: Yes

Oil Capacity: 150 ML

Outside Pulley Diameter: 3.875 Inch

Pulley Belt Width: 6-Rib

Quantity: Kit

Rotor Type: Eaton TVS 2300

System Type: Stage 1 – Street System

Tensioner Included: Yes

Universal Or Specific Fit: Specific

Vehicle Model: Corvette
