Description

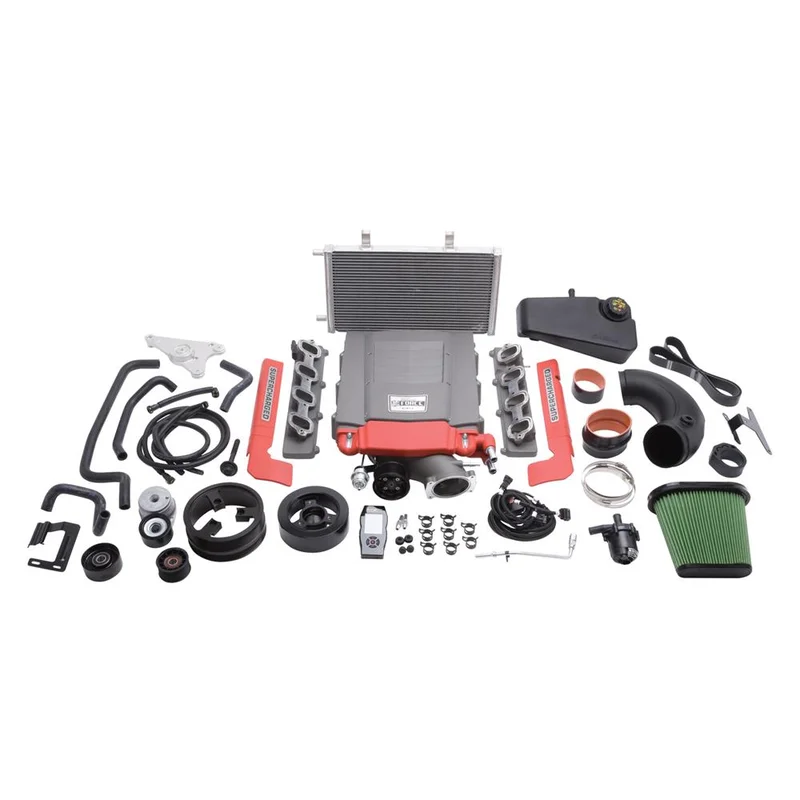

Edelbrock supercharger Stage 1 Street System part #1570 for 2014-19 Corvette Stingray Z51 increases the performance of your LT1 engine to 624 horsepower and 600 ft-lbs of torque to the crank.The Edelbrock supercharger Stage 1 Street System part #1570 for 2014-19 Corvette Stingray Z51 increases the performance of your LT1 engine to 624 horsepower and 600 ft-lbs of torque to the flywheel. The core of this system is the Eaton Gen VI 2300 TVS rotating assembly with a four-lobe design with 160 degrees of twist for maximum flowminimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttleimproving mileage potential. Our unique and efficient inlet configuration results in a shorterless restrictive intake path for improved airflowwithout the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger.The supplied tune is intended for completely stock vehicles with the exception of a cat-back exhaust.

9040: D-215-103

Air Filter Included: Yes

Calibration: Yes

Center Housing Cooling Type: Intercooler

Finish: Black Powder Coated

Gasket Or Seal Included: Yes

Harmonic Balancer Diameter: 7.5″

Hose Included: Yes

Housing Material: Cast Aluminum

Internal Step Up: Yes

Maximum Boost Pressure: 5.5 PS

Maximum Horsepower: 624

Maximum Pressure Reading: 5.5 PS

Maximum Torque: 600 85

Mounting Bracket Included: Yes

Mounting Hardware Included: Yes

Oil Capacity: 150 ML

Outside Pulley Diameter: 3.5 Inch

Pulley Belt Width: 10-Rib

Quantity: Kit

Rotor Type: Eaton TVS 2300

System Type: Stage 1 – Street System

Tensioner Included: Yes

Universal Or Specific Fit: Specific

Vehicle Model: Corvette
