Description

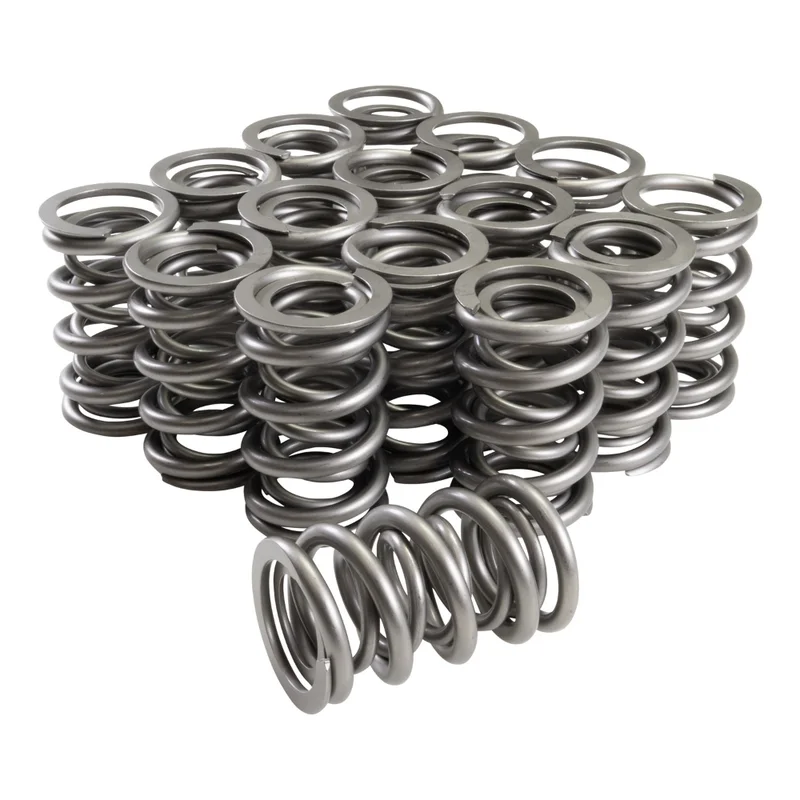

DUAL SPRING1.560 OD1.900 IH.740 LIFT550 LBS/INSUPERFINISHCOMP Cams’ new 26943 dual valve springs are a product of innovative design and superior craftsmanship. Engineered with state-of-the-art techniques and premium wire processingincluding superfinishingthey redefine reliability and consistency in the performance automotive aftermarket. The 26943 is geared towards race-oriented solid roller applicationswith up to .740â? lift at an installed height of 1.900â?. They fit cylinder heads with at least a 1.560″ spring pocket. Boasting an open load of over 600 poundsthese valve springs are designed for race applications with exceptional performance and durability. Whether you’re seeking improved dynamicsenhanced valve controlor unmatched reliabilitywe have the valve springs to deliver the perfect solution. Elevate your engine’s dependability and confidence on the track with COMP Cams valve springs.

Compatible Retainers:748 Steel Retainers for 10° Locks and All Valves

Compatible Seats:4642 Spring Seats for .570 Guide

Compatible Shims: 4757 Spring Shims

Damper Spring Included: No

ID of Inner Spring:1.137 IN

Installed Height: 1.900″

Load at Installed Height:240 LB

Load at Open Height:590 LB

Maximum Coil Bind Height:1.100 IN

Number of Springs Per Valve: 2

OD of Outer Spring:1.550 IN

Open Height: 1.200 Inch

Quantity: 16

Recommended Max Lift:.740 IN

Spring Rate:550 PPI

Spring Type:Dual Spring

Valve Spring Finish:Superfinish
